Montage/built Crono F20, Tune Mag190/Mig70, Cx-ray. [en 2]

Publié le par Adrien

After a request made by a racer needing a light, reliable, stiff, very strong wheelset, and beside this all black from the hubs to the tip of the ties, I assembled this set using Ambrosio Crono F20 rims linked to TUNE Mig70 and Mag190 hubs thanks to 28 front and 32 rear Cx-ray spokes. There are ties for both the front and the rear wheels.

Thus, the wheels are 17gr heavier than 1300gr and have a very versatile and agressive look at the same time!

Front wheel

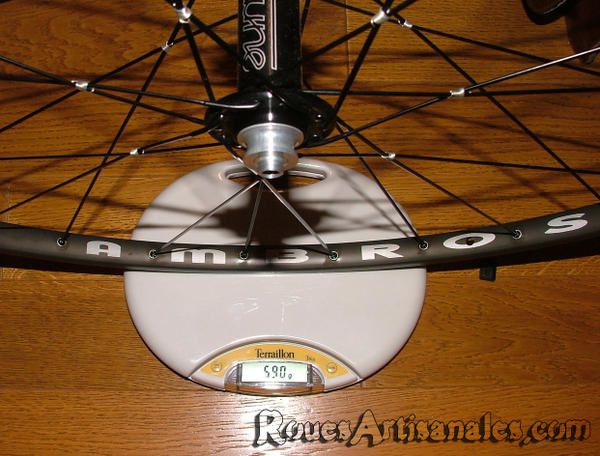

The front wheel weights 590gr with its 28 Cx-ray spokes 3 times crossed and tied. The nipples used come from DT Swiss, they're made out of a very strong aluminium.


Rear wheel



727gr for the rear wheel with 32 spokes similar to the the front wheel, they're 3 times crossed on both sides. The nipples are the same as the ones of the front wheel.

The ties


In order to turn the ties black, an anti-rust paint has been applied on the ties. The result is pretty and the tie wire can even be invisible with many layers. However I preferred a thin layer to let the handmade side visible and to save a few grams.





The set

The set with silver ties

Click to enlarge
Click to enlarge
Click to enlarge

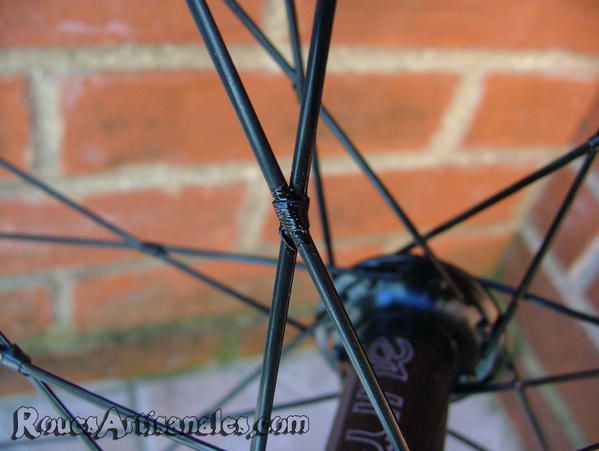

The set with black ties
Click to enlarge Click to enlarge

Total weight 1317gr
